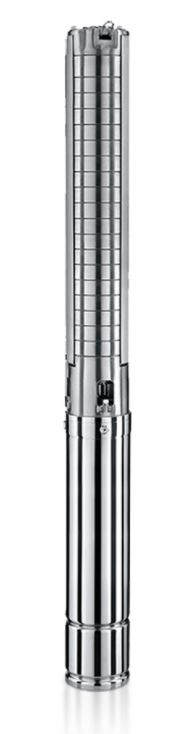

Pompe submersible en acier inoxydable 4" B-SP 8-12 / 3x230 V (Franklin Electric)
Accessoires
| Q max débit maximal | 180 l/min |
| Tension | 3x230 V |
| H max Hauteur de refoulement | 76 m |
| P max Puissance maximale absorbée | 2,2 kW |
| DN évacuation - diamètre | 2 '' |
| Max. température du liquide pompé | 35 °C |
| Diamètre de la pompe | 98 mm |
| Courant | 9,5 A |
| Immersion maximale du moteur | 100 m |
| Type de moteur | Franklin Electric |
| Variant | Prix | Disponibilité |
|---|
|
Pompe submersible en acier inoxydable 4" B-SP 8-5 / 3x230 V (Franklin électrique)
Q max: 180 l/min Tension: 3x230 V H max: 32 m P max: 0,75 kW DN évacuation - diamètre: 2 '' Max. température du liquide pompé: 35 °C Diamètre de la pompe: 98 mm Courant: 3,5 A Immersion maximale du moteur: 100 m Type de moteur: Franklin Electric |
|
Pompe submersible en acier inoxydable 4" B-SP 8-4 / 3x230 V (Franklin Electric)
Q max: 180 l/min Tension: 3x230 V H max: 25 m P max: 0,55 kW DN évacuation - diamètre: 2 '' Max. température du liquide pompé: 35 °C Diamètre de la pompe: 98 mm Courant: 2,8 A Immersion maximale du moteur: 100 m Type de moteur: Franklin Electric |
|
Pompe submersible en acier inoxydable 4" B-SP 8-10 / 3x230 V (Franklin Electric)
Q max: 180 l/min Tension: 3x230 V H max: 64 m P max: 1,5 kW DN évacuation - diamètre: 2 '' Max. température du liquide pompé: 35 °C Diamètre de la pompe: 98 mm Courant: 6,7 A Immersion maximale du moteur: 100 m Type de moteur: F.B. submersible motors |
|
Pompe submersible en acier inoxydable 4" B-SP 8-15 / 3x230 V (moteurs submersibles F.B.)
Q max: 180 l/min Tension: 3x230 V H max: 95 m P max: 2,2 kW DN évacuation - diamètre: 2 m Max. température du liquide pompé: 35 °C Diamètre de la pompe: 98 mm Courant: 11 A Immersion maximale du moteur: 100 m Type de moteur: F.B. submersible motors |
|
Pompe submersible en acier inoxydable 4" B-SP 8-15 / 3x230 V (Franklin Electric)
Q max: 180 l/min Tension: 3x230 V H max: 95 m P max: 2,2 kW DN évacuation - diamètre: 2 m Max. température du liquide pompé: 35 °C Diamètre de la pompe: 98 mm Courant: 9,5 A Immersion maximale du moteur: 100 m Type de moteur: Franklin Electric |
|
Pompe submersible en acier inoxydable 4" B-SP 8-12 / 400 V (Franklin Electric)
Q max: 180 l/min Tension: 400 V H max: 76 m P max: 2,2 kW DN évacuation - diamètre: 2 '' Max. température du liquide pompé: 35 °C Diamètre de la pompe: 98 mm Courant: 5,5 A Immersion maximale du moteur: 100 m Type de moteur: Franklin Electric |
|
Pompe submersible en acier inoxydable 4" B-SP 8-12 / 3x230 V (moteurs submersibles F.B.)
Q max: 180 l/min Tension: 3x230 V H max: 76 m P max: 2,2 kW DN évacuation - diamètre: 2 '' Max. température du liquide pompé: 35 °C Diamètre de la pompe: 98 mm Courant: 11 A Immersion maximale du moteur: 100 m Type de moteur: F.B. submersible motors |
